Electric Motor Monitoring Systems

Use MeterTrac connected gems power meters to see running time and power consumption of single and three-phase electric motors.

Systems

Electric Motor Monitoring Systems



Use MeterTrac connected gems power meters to see running time and power consumption of single and three-phase electric motors

Features

WiFi

Measure and monitor with multi-electric power modes
Up to 12 single phase or 4 3P4W feeders power monitoring
Measurement; V(L-N, L-L), A, Hz, PF, Unbalance, Power(P,Q,S), Energy(P,Q,S), etc.
0.5/1.0 Class accuracy according to IEC62053-21/22
Flexible application for 3phase4wire/ 3phase3wire power line
Sag/Swell function (min 0.5 cycle)
Total Harmonics distortion (THD)
Supports Ethernet communication with optional wifi
Support Cloud energy platform

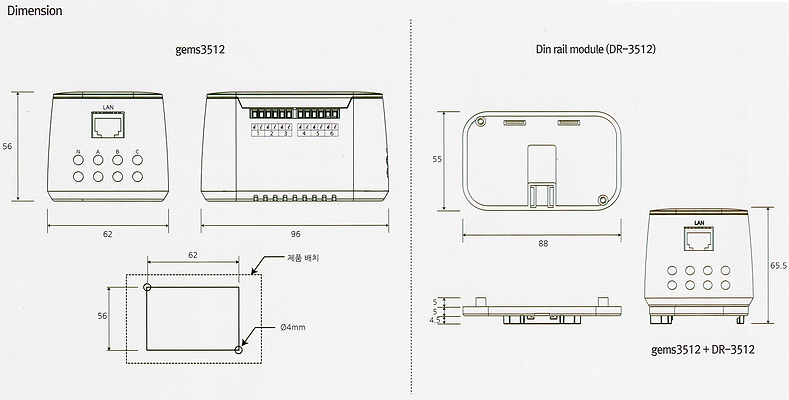

Compact in size with easy installation (62mm X 96mm X 56mm)
Strong structure, dust protection, removable top cover

Communication

Typical Wiring

Installation Examples

Specifications

Accessories

Ordering Codes

gems3512 - CT Type - W

W = WiFi (optional extra)

CT Type =  AT;100mA CT (secondary output)

                   VT;333mV CT (secondary output)

                   RT;Rogowski coil

Ordering Code Examples

Accessories

CT List

CT Cable List

DR-3512; DIN Rail Device for gems3512
